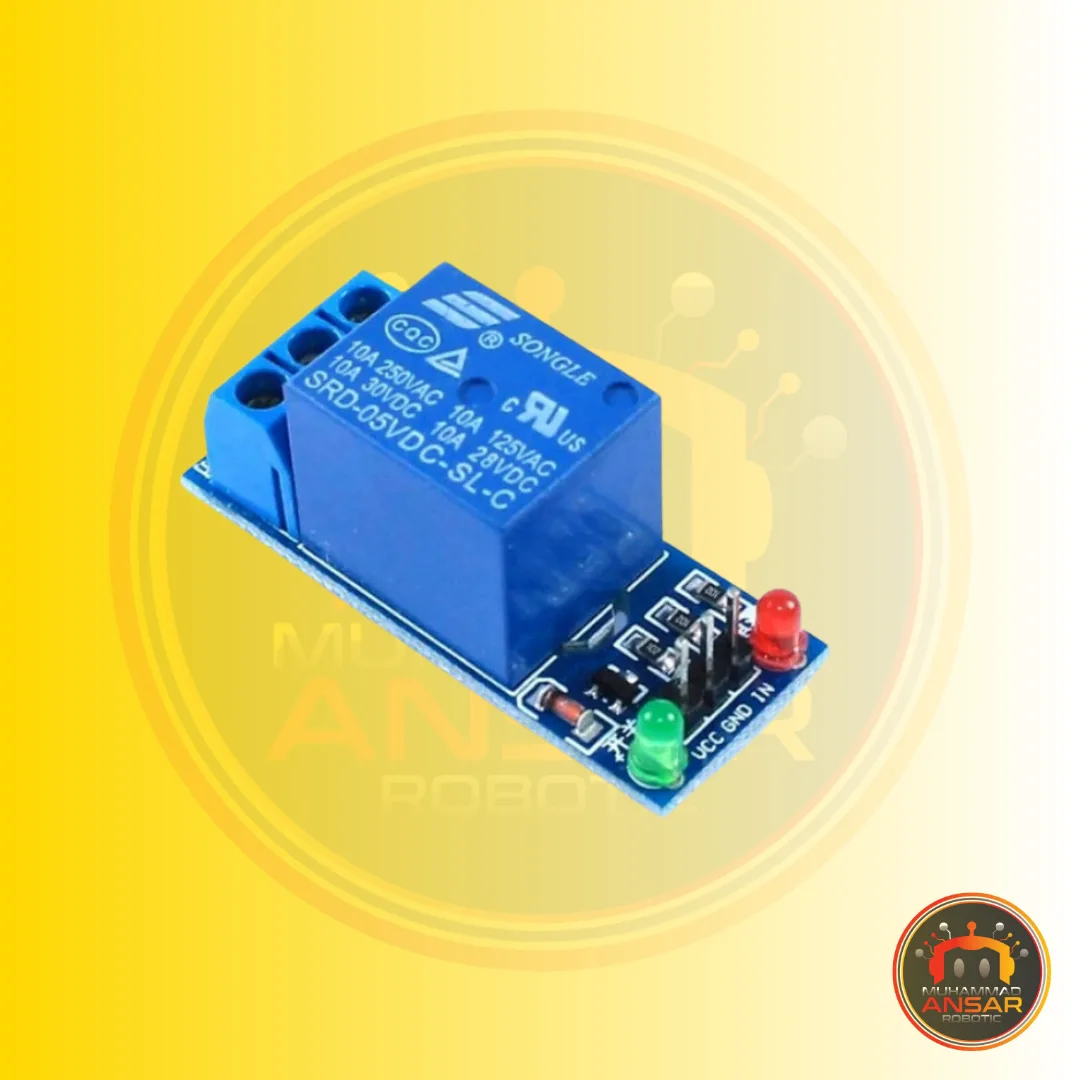

1-Channel 5v Relay Module

SKU: A000034

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

 200

19 in stock

19 in stock

18 People watching this product now!
  • Pick up from the MA Robotic

To pick up today

Free

  • TCS Courier delivery

Our courier will deliver to the specified address

All Over Pakistan

2-3 Days

Description

1 Channel 5V Arduino Relay Module for Arduino PIC AVR DSP ARM. Single-channel relay, a wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on can control it. The 5V relay module circuit, each one needs 15mA-20mA driver current and equipped with high current relay: DC 30V / 10A, AC 250V / 10A. This one channel module has a standard interface that can be compatible with a microcontroller.

This 5V Arduino relay module has on the high level and low level-triggered mode, friends who do not understand, have a look high-level trigger refers to the signal voltage between input and trigger, can be understood as a signal input with VCC cathode short-circuit triggered away.
Low-level trigger refers to the signal voltage between the input terminal and Earth OV trigger, can be understood as the signal input terminal and the GND negative electrode short circuit triggered away 1-channel relay module connection.

Specification:

  • VCC: Power interface,5V
  • GND: Ground
  • IN: Control interface.
  • Drive Current: At least 4mA
  • COM: Control circuit ground, connect to GND
  • Size: approx. 41 x 16 x 16mm/ 1.61 x 0.62 x 0.62”
