The 16×2 Character LCDs have their own limitations; they can only display characters of certain dimensions. The Graphical LCDs are thus used to display customized characters and images. Graphical LCDs find use in many applications; they are used in video games, mobile phones, lifts, etc. as display units.

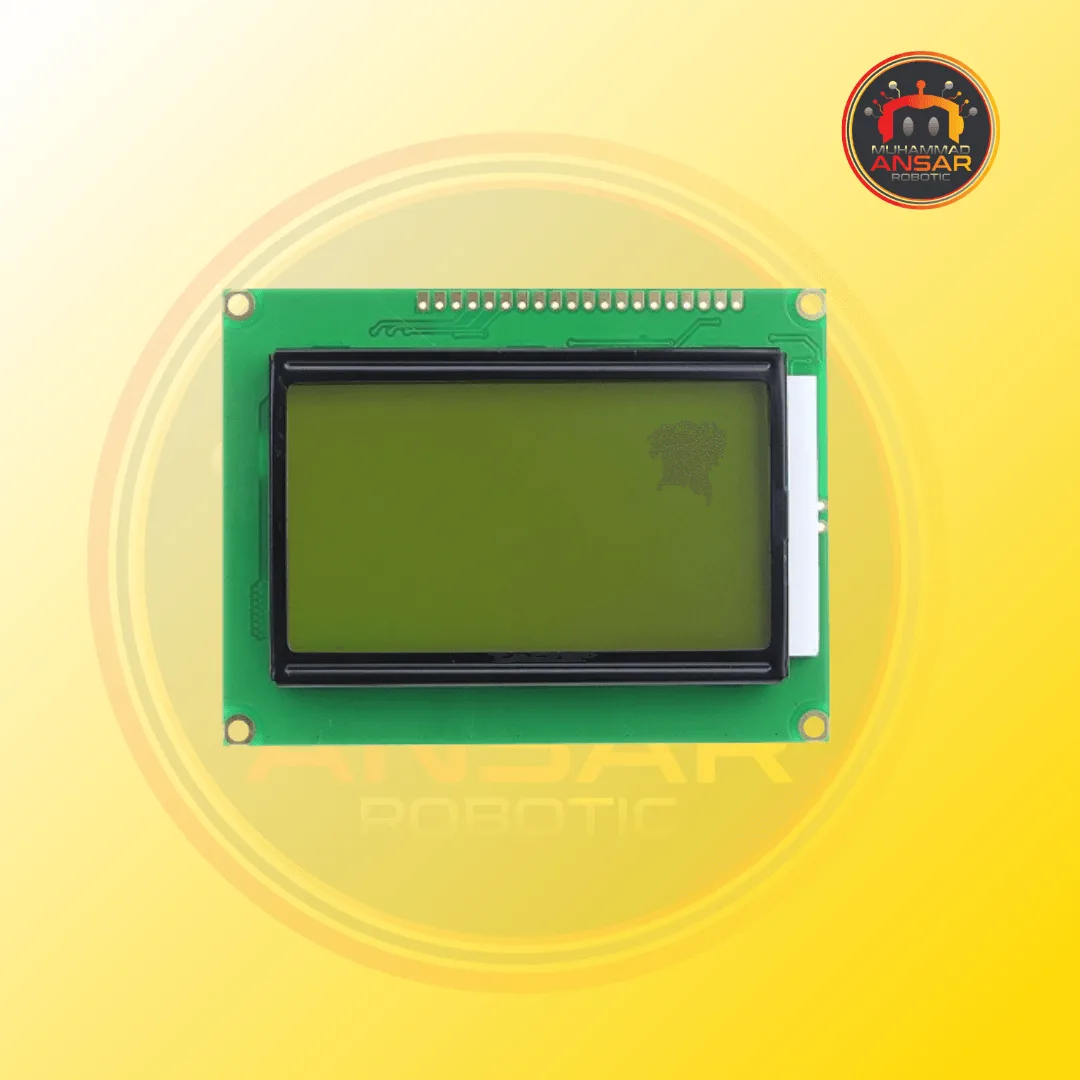

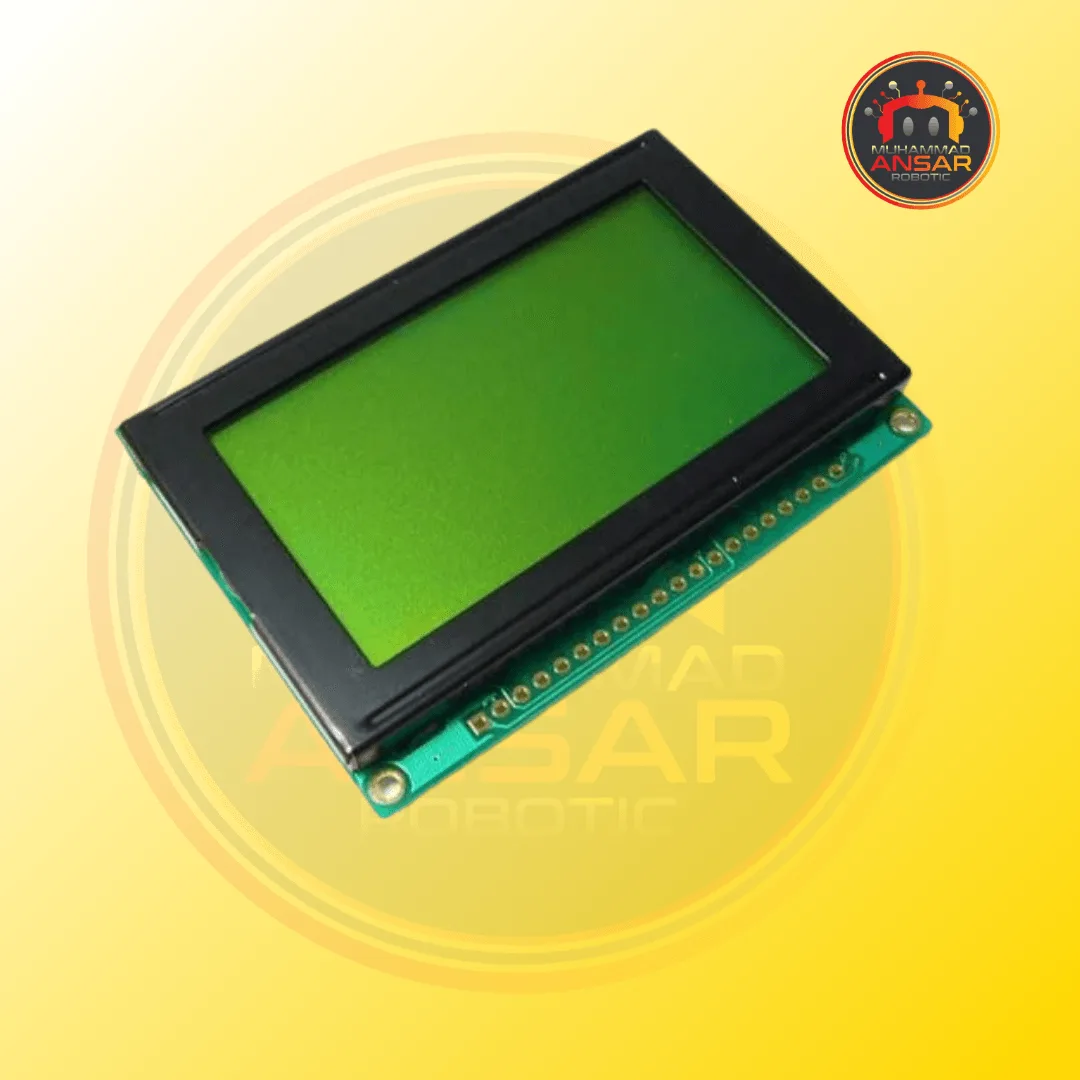

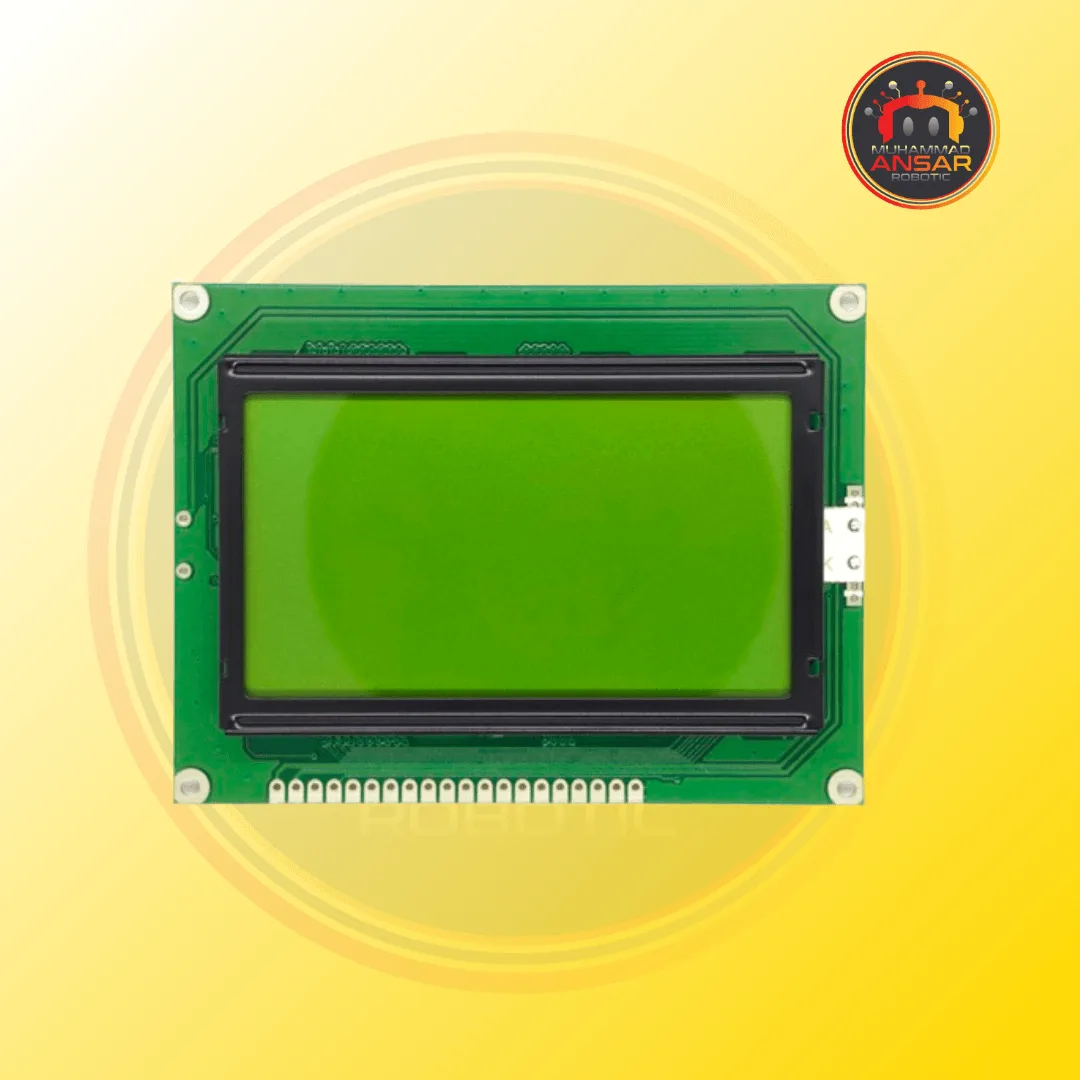

Various graphical LCDs are available in the market with different sizes. Here JHD12864E Graphical LCD has been explained. This LCD has a display format of 128×64 dots and has a yellow-green color backlight. Each LCD needs a controller to execute its internal operations. This LCD uses two KS0108 controllers.
The 128×64 LCD is divided into two equal halves with each half being controlled by a separate KS0108 controller. Such LCDs (using KS0108 controller) involve a paging scheme, i.e., whole LCD is divided equally into pages. The paging scheme of the graphical LCD can be easily understood from the following table.
