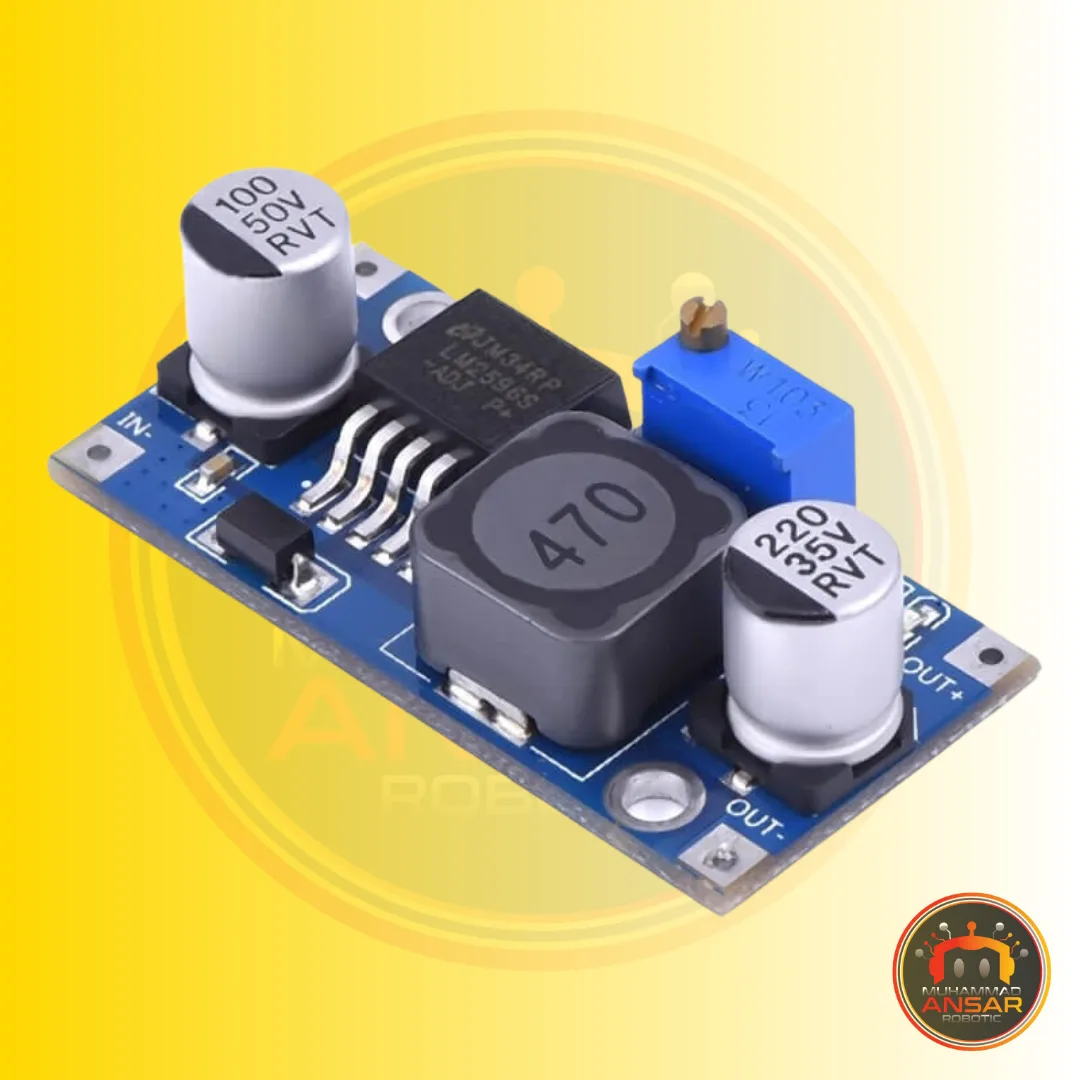

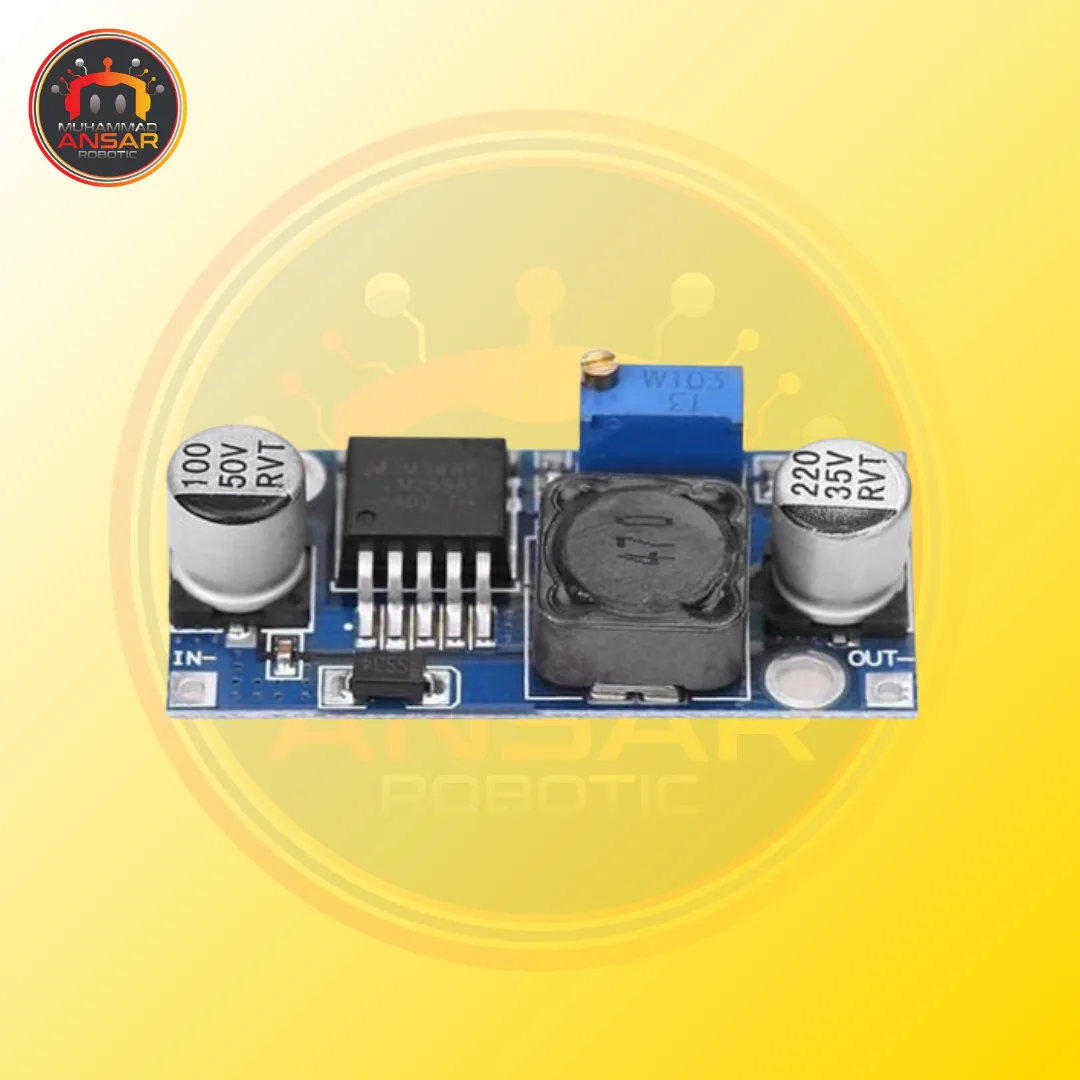

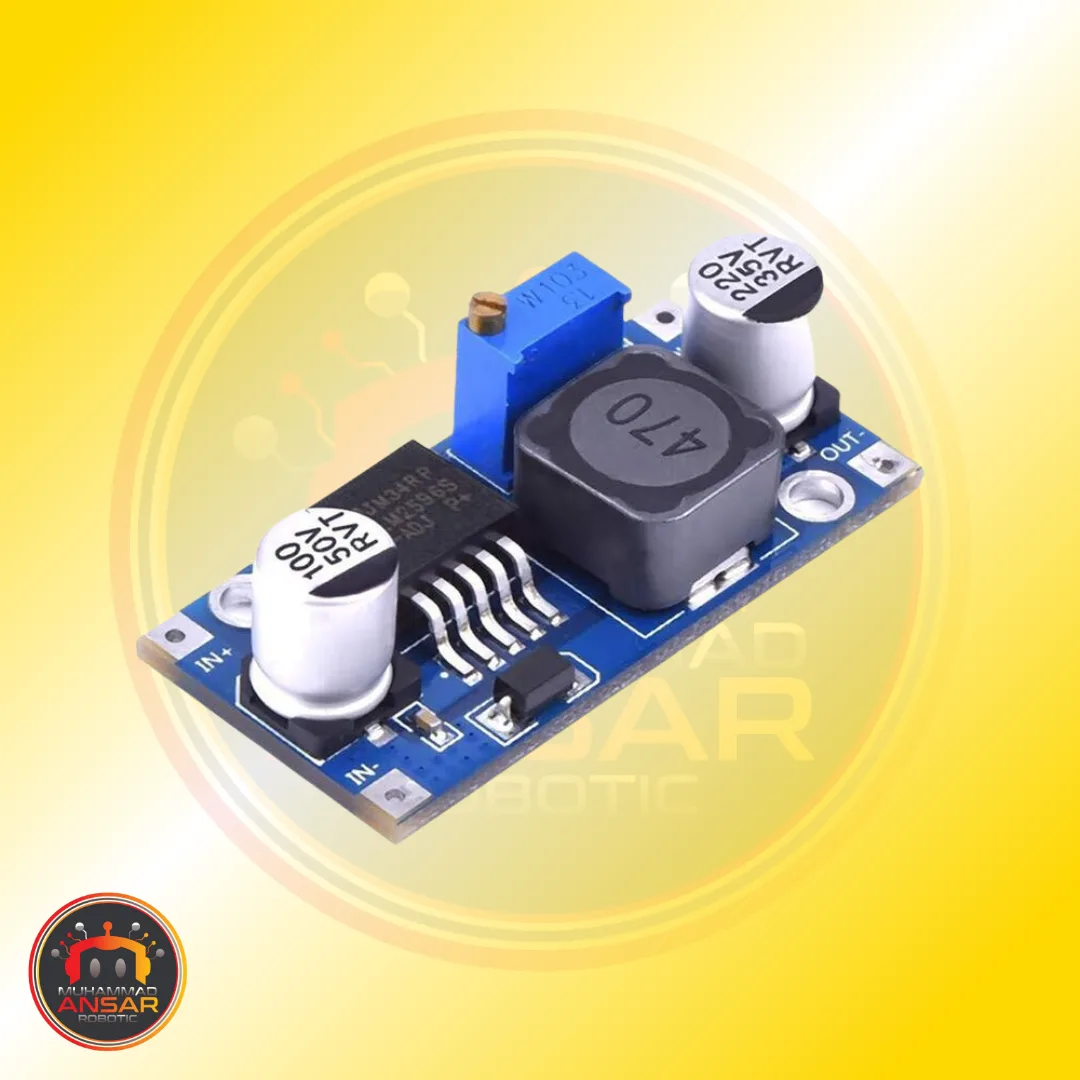

LM2596 DC To Dc Buck Converter Step Down Module Power Supply
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
₨ 250
20 in stock
20 in stock
19
People watching this product now!
Description
LM2596 DC-DC Buck Converter Step Down Module Power Supply is a step-down(buck) switching regulator. LM2596 Buck is capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. The LM2596 Stepdown module is operating at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators
Features:
- Non-isolated step-down (BUCK) switching regulator
- Short Circuit Protection: Current limiting, self-recovery
- Potentiometer adjustment direction
- Non-synchronous rectification
Specifications:
- Model Name: DC-DC LM2596S Buck Module
- Input Voltage: 3.2V~46V (recommended for use in 40V)
- Output Voltage:1.25V~35V
- Output Current: 3A (maximum)
- Conversion Efficiency: 92% (highest)
- Output Ripple: <30mV
- Switching Frequency: 65KHz
- Working Temperature: -45 ~ +85
- Dimension: 21mm * 43mm * 14mm (length * width * height)
