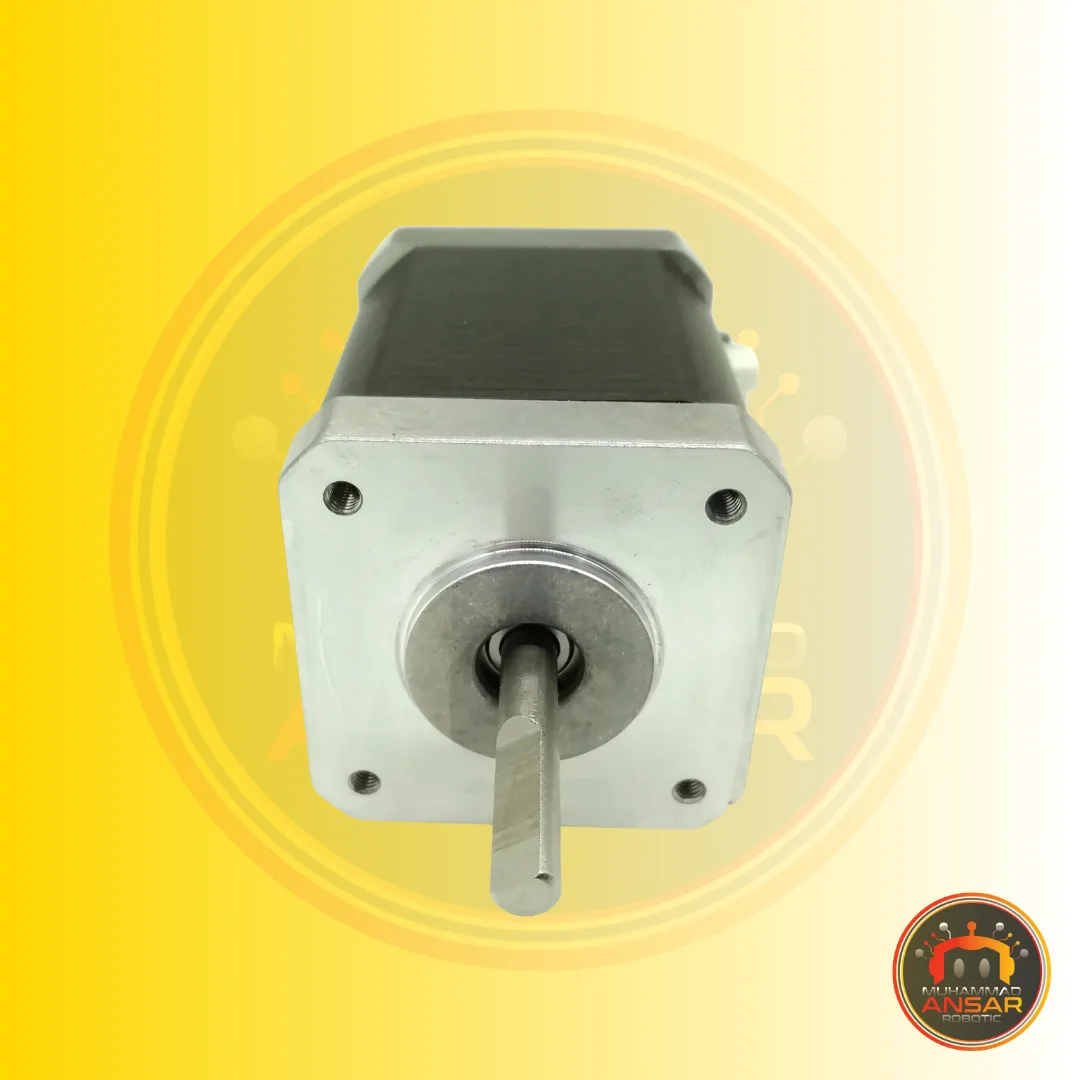

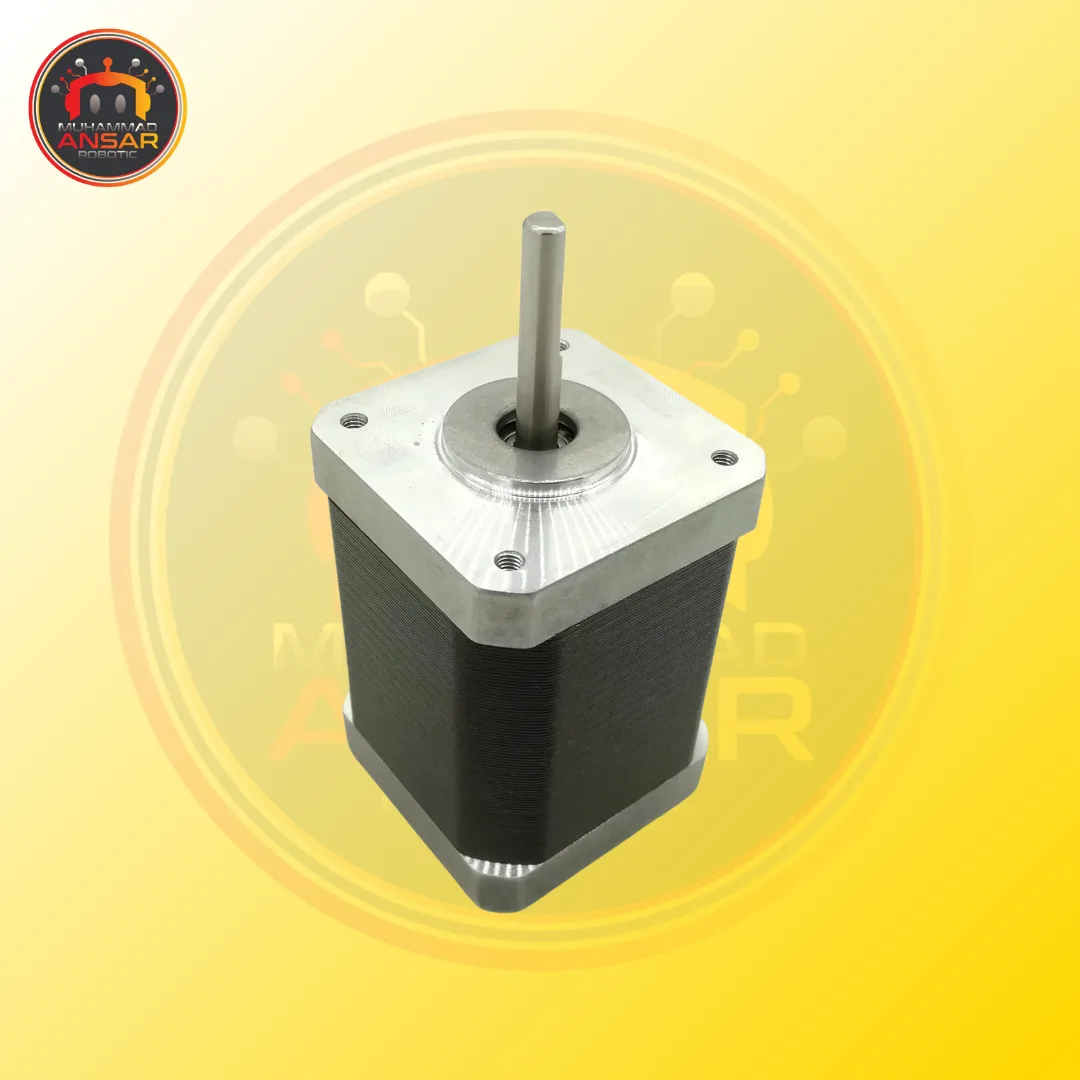

Nema17 Stepper Motor 1.5A

This Nema 17 Stepper Motor For 3D Printer & CNC is a standard sized stepper motor. Nema17 used in many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc. Nema17 4 wire Bipolar Stepper Motor is High precision 4–wire bipolar stepper motor, size in Nema17, 1.8 deg. It is one of the most parameters for the stepper motor. You can use A4988 or drv8825 driver to run this motor.

Features:

• The Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position.
• This is a high-quality motor that can be used for a long time without stuck.
• It has a quite stable performance during work and will not lose a step.
• Low noise and big torque, this is a great choice if you need a stepper motor.
• Stepper motor can be widely used for a 3D printer, CNC engraving machine, etc.

Specifications:

• current: 1.5 A
• voltage: 24 V
• 1.8 deg
• 6-wire pin
• body length: 45 mm
• width/height: 42 mm
• total length: 68 mm
• axle diamete:r 5 mm
• sprocket diameter: 13 mm
