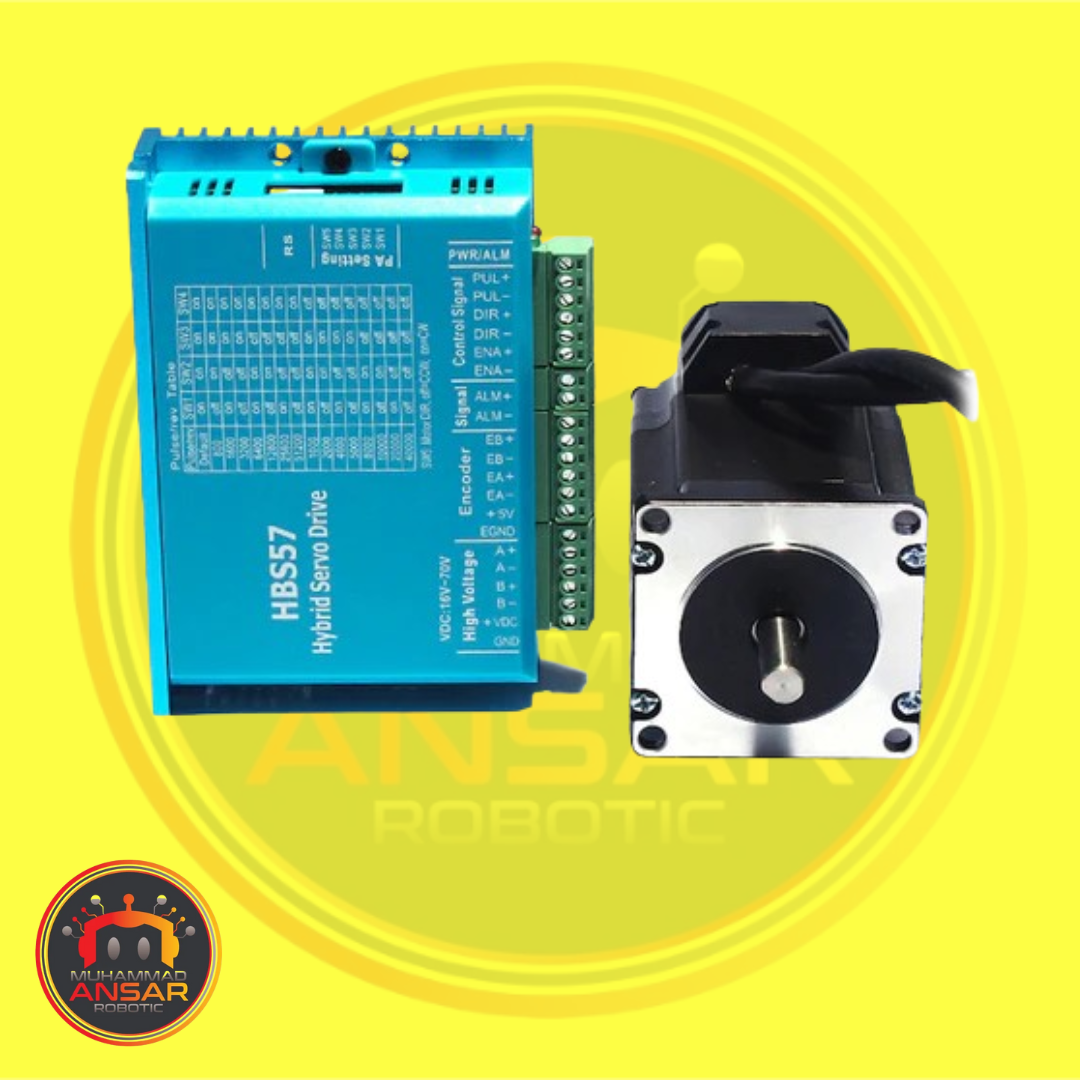

Nema23 Motor plus driver

General Specifications

– Motor Type: Hybrid Stepper Motor
– Frame Size: NEMA 23 (57mm x 57mm)
– Shaft Diameter: 6.35mm (1/4 inch)
– Shaft Length: 24.5mm (0.96 inch)
– Mounting Holes: 4 x M5 (5mm)

Electrical Specifications

– Voltage: 2.5V – 12V DC
– Current: 5A
– Resistance: 0.5Ω – 1.5Ω
– Inductance: 5mH – 15mH
– Phase: Bipolar

Mechanical Specifications

– Steps per Revolution: 200
– Step Angle: 1.8°
– Holding Torque: 5.5Nm – 7.5Nm (780 oz-in – 1060 oz-in)
– Detent Torque: 1.5Nm – 2.5Nm (210 oz-in – 360 oz-in)
– Rotor Inertia: 60g-cm² – 150g-cm²
– Weight: 0.8kg – 1.5kg (1.76lb – 3.3lb)

Environmental Specifications

– Operating Temperature: -20°C to 80°C (-4°F to 176°F)
– Storage Temperature: -40°C to 100°C (-40°F to 212°F)
– Humidity: 20% – 80% RH

Applications

– CNC machines
– 3D printers
– Robotics
– Automation systems
– Medical devices

Certifications

– CE certified
– RoHS compliant
– UL certified

Warranty

– 1-year warranty against manufacturing defects

Package Includes

– NEMA 23 stepper motor
– Mounting screws (M5)
– Cable connector

Additional Features

– High torque and precision
– Low vibration and noise
– High reliability and durability
– Suitable for high-speed applications
