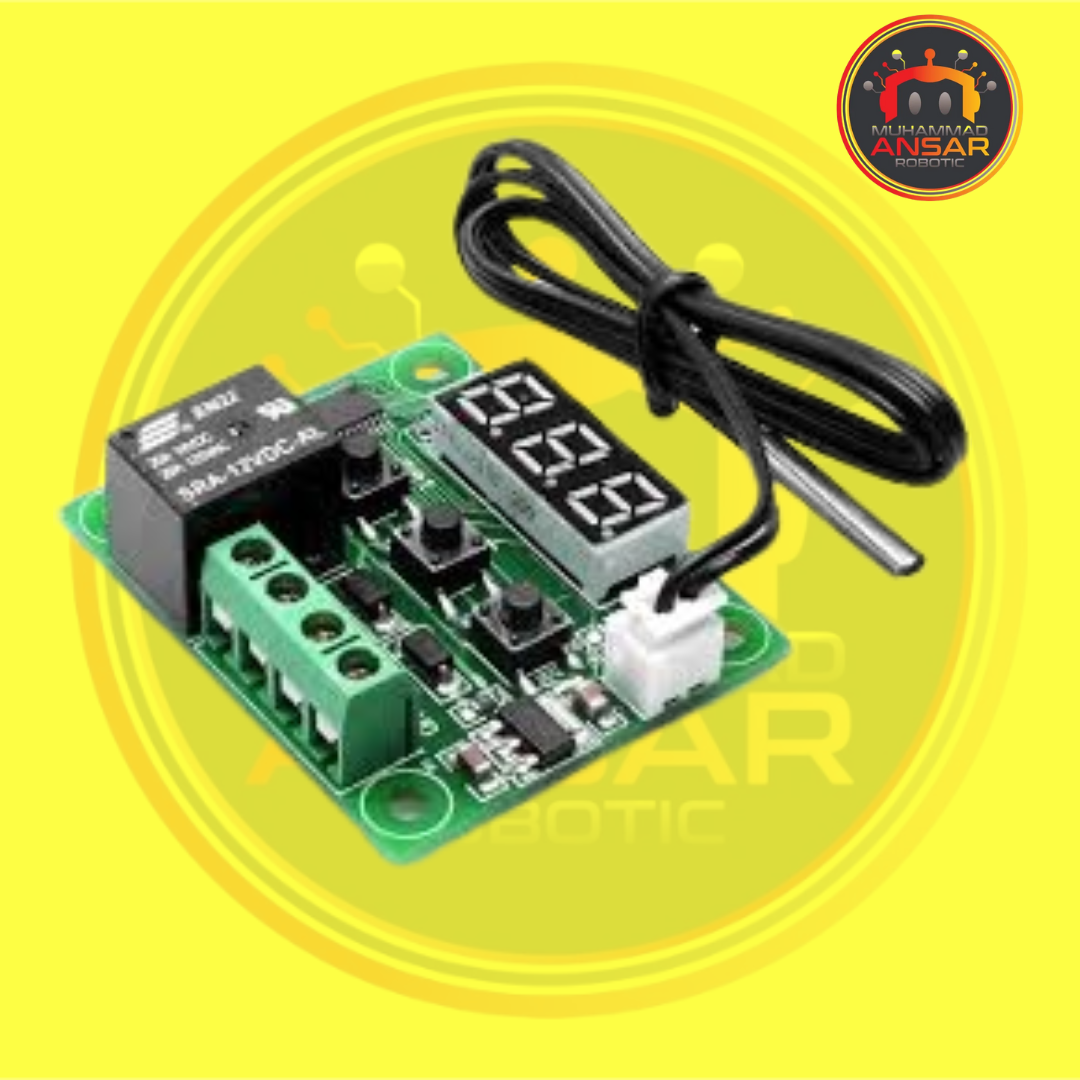

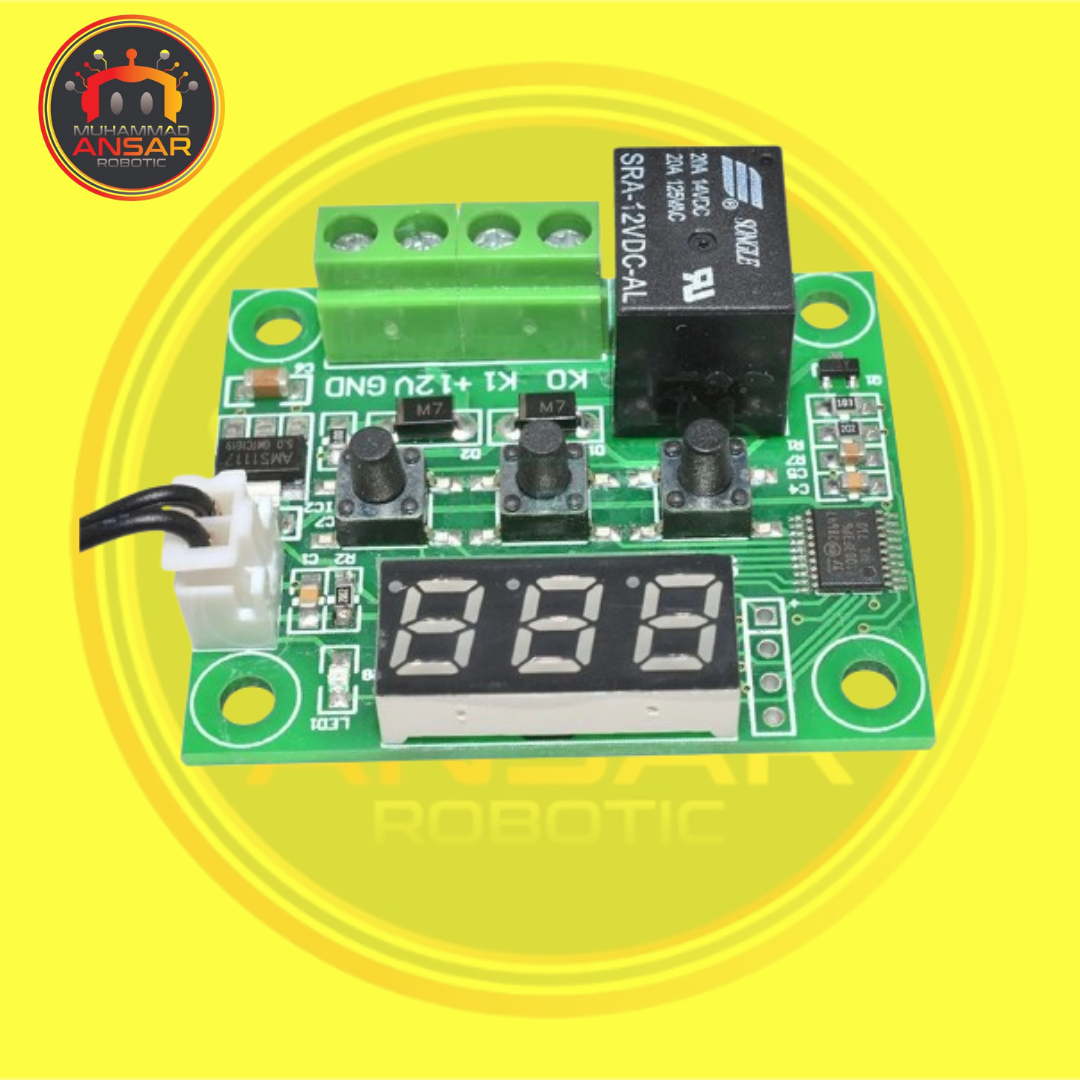

W1209 temperature controller
W1209 DC12V Digital Thermostat Temperature Controller Incubator Controller
Both Heat and Cool Purpose
Temperature control range; -50 to +110
Temperature measurement accuracy; 0.1
Control accuracy; 0.1
Hysteresis accuracy; 0.1
Refresh frequency; 0.5 S
Input power; DC 12V
Measurement input; NTC 0.5% waterproof sensor
Relay Output Maximum Capacity : =10A -> 220VAC, and 20A -> 14VDC
Environmental requirements:-10-60Humidity 20% -85%
Size: 48 (L) * 40 (W) * 14 (D) mm
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
₨ 400
500 in stock
500 in stock
-
Pick up from the MA Robotic
To pick up today
Free
-
TCS Courier delivery
Our courier will deliver to the specified address
All Over Pakistan
2-3 Days
Description
– Operating Voltage: 12V DC
– Operating Current: 100mA
– Temperature Control Range: -50°C to 120°C
– Temperature Accuracy: ±1°C
– Display Type: 3-Digit LED Display
Input/Output:
– Input: Thermistor
– Output: Relay output (Normlyopen)
Control Features:
– Temperature setpoint adjustment
– Hysteresis adjustment
– Heating/Cooling mode selection
– Automatic/Manual mode selection
Interface:
– User-friendly interface with 3 buttons (UP, DOWN, SET)
– LED indicators for power, relay status, and alarm
Environmental:
– Operating Temperature: -20°C to 60°C
– Storage Temperature: -30°C to 80°C
Physical Dimensions:
– Size: 77mm x 35mm x 23mm
– Weight: 60g
Applications:
– Temperature control for HVAC systems
– Industrial temperature control
– Laboratory temperature control
– Medical equipment temperature control
– Incubator
